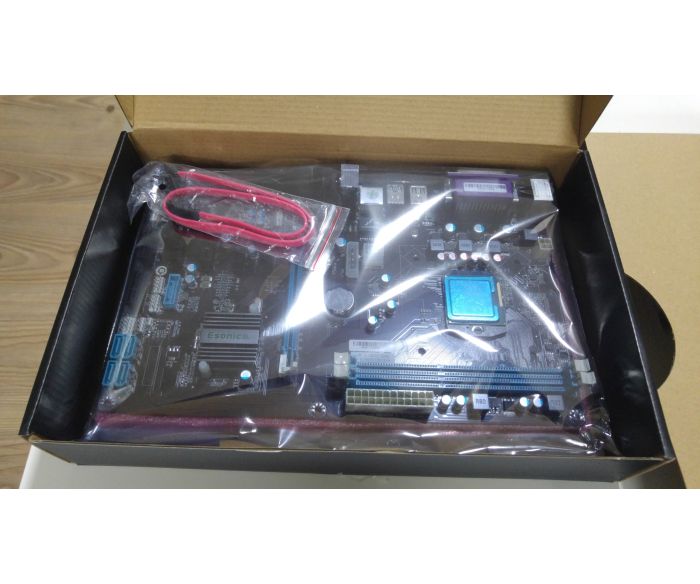

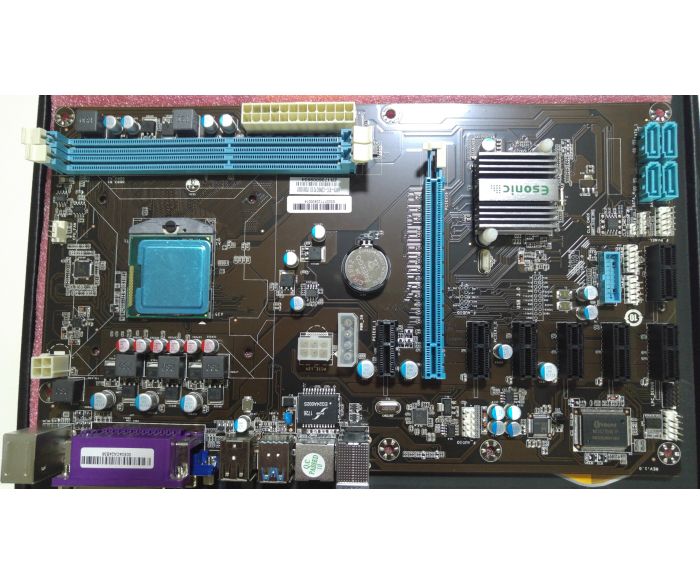

ESONIC BTC ESonic HM76-65 BTC Combo P2 (Pentium 2.0 GHz& 8 adet PCI_E)

CPU(Processor)

Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors

Chipset

Intel ® HM6X/7X Express Chipset

Memory

2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

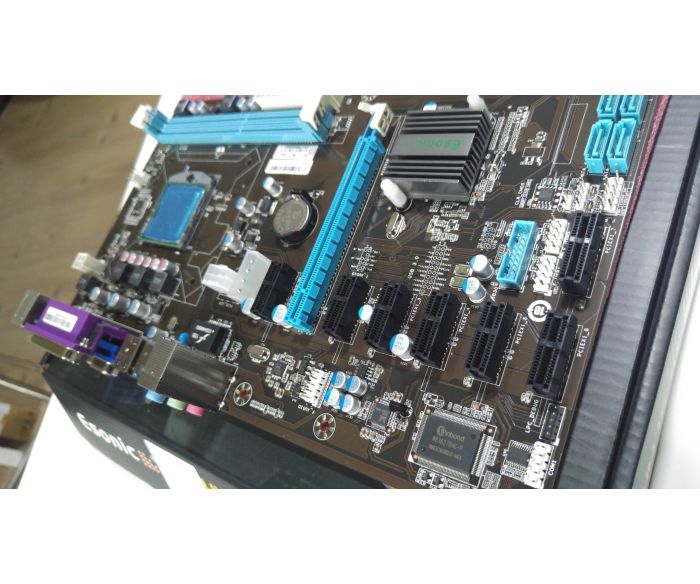

Slots

- 1 * PCI Express x16 Slot

- 8 * PCI Express x1 Slot

Storage

- 4* Serial ATA 2.0 devices (HM6X);4* Serial ATA 3.0 devices (HM7X)

Internal I/O Connectors

- 1 * 24-pin ATX Power Connetor

- 1 * 4-pin ATX 12V Power Connetor

- 2 * USB connector support additional 4 USB ports

- 1 * LPC_DEBUG connector

- 1 * Front panel audio connector

- 1 * System Panel connector

Back Panel I/O Ports

- 1 * PS/2 Mouse/Keyboard

- 1 * VGA

- 1 * HDMI

- 4 * USB 3.0 / 2.0

- 1 * RJ45(LAN) Port Gigabit lan

- 1 * 3 Audio jacks

BIOS

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio

Chip integrated by Realtek ALC661, Supports 5.1-channel audio-out

Form Factor

- Micro ATX - 320*168 mm
